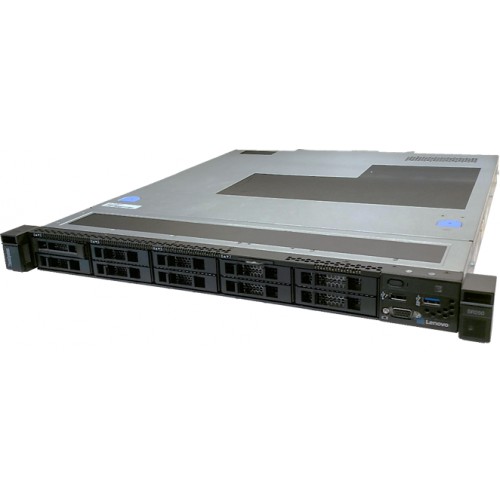

Lenovo ThinkSystem SR250 V2

Form Factor

1U rack Server; Height: 1.7 inches, width: 17.1 inches, depth: 19.6 inches

Processor

1x Xeon E-2378 (8C 2.6GHz 16MB Cache/65W)

Memory

32GB UDIMMs 3200MHz TruDDR4 Up to 128GB in 4x DIMM slot

Disk Bay Combinations

8x 2.5-inch hot-swap SATA/SAS drives

Expansion Slots

2x PCIe Gen4 x8 slots or 1x PCIe Gen4 x16 slot

RAID

5350-8i internal hot swap Multiple RAID configurations

Network Interface

2x GbE on-board ports (Broadcom BCM5720

Ports

Front: 1x USB 3.2 Gen 1 (5Gbps), 1x USB 2.0 port for local management using the XCC Mobile app
Rear: 2x USB 3.2 G2 (10Gb) ports, 2x RJ45 Gigabit Ethernet ports, 1x 1GbE dedicated XCC port for remote management, 1x Serial port and 1x VGA port

Systems Management

Lenovo XClarity Controller XCC2 Platinum

Power Supplies

1 x 450W Platinum redundant pair of hot-swap power supplies

OS Support

Microsoft Windows Server 2022, 2025 Red Hat, SUSE, and VMware ESXi. Visit lenovopress.com/osig for more information.

Limited Warranty

3 Years warranty on-site
